In the winter of 1942, a British inventor handed the Royal Navy a block of material that looked like cloudy ice but behaved like wood. It could be sawed, nailed and chipped. It resisted bullets. It floated. And according to the proposal attached to it, it could be scaled up into the largest warship ever built—a vessel made not of steel but of frozen sawdust and water, capable of carrying aircraft across the North Atlantic without fear of torpedo or bomb.
The proposal had a code name drawn from the Old Testament prophet: Project Habakkuk. For a period during World War II, it received genuine funding, serious engineering study and a classified prototype built beneath the Canadian Rockies.
The frozen model at Patricia Lake, Alberta is real. The material called pykrete was genuinely tested. The engineering drawings were genuinely produced. What was never built was the enormous operational carrier those drawings described. This is a documented wartime engineering proposal—authenticated, studied and ultimately abandoned—not a secret ship that sailed or still rests somewhere under ice.
The central question is specific: why did the pykrete prototype never become a full-scale Project Habakkuk aircraft carrier? The record is detailed enough to answer it.
What the Documents Say
The material at the center of the project was developed by Geoffrey Pyke, a British journalist and inventor working for Combined Operations Headquarters under Lord Louis Mountbatten. Pyke had been studying the strategic problem of the mid-Atlantic gap—the zone beyond the range of land-based aircraft where Allied convoys were most vulnerable to German submarine attack. He proposed building a floating airstrip from a composite material he called pykrete: roughly 86 percent water and 14 percent wood pulp or sawdust, frozen together.
Pykrete had properties that ordinary ice did not. It was significantly stronger, it melted far more slowly when exposed to warm air, and a bullet fired into it left only a shallow crater instead of shattering the surface. The Jasper-Yellowhead Museum and the Alberta Aviation Museum both cite the composition at approximately 14 percent wood pulp by weight—a figure consistent with the National Research Council of Canada’s own documentation of the project.

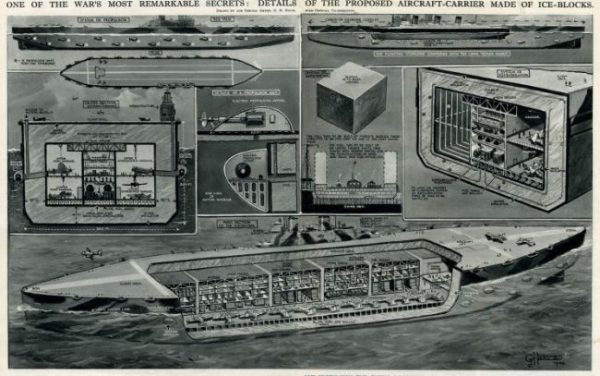

The projected carrier was enormous. Design studies described a vessel approximately 600 meters in length, 90 meters wide, and displacing around 2.2 million tons—vastly larger than any steel warship in existence. It would require onboard refrigeration machinery to keep the hull from melting, insulation layered beneath a wooden exterior, and a crew of hundreds to maintain the structure. The design called for a top speed of around six knots, slow enough to limit tactical flexibility but sufficient, in theory, to hold position as a mid-ocean platform.
The documents produced by the National Research Council of Canada record the engineering calculations, the material testing results and the projected resource requirements in detail. They do not record a ship that was ever assembled beyond the scale model. The record is consistent across archive sources: the proposal was studied, approved for prototype testing and then subjected to the cost analysis that would define its fate.
Who Approved and Oversaw the Project
Project Habakkuk was formally supported at the highest levels of the Allied command structure—at least briefly. Lord Mountbatten, then Chief of Combined Operations, championed the proposal to Winston Churchill. Churchill’s response was favorable enough to authorize continued development. The project was also discussed at the Quebec Conference in August 1943, where Allied leaders met to coordinate strategy, and a pykrete demonstration was reportedly conducted for senior commanders including Churchill and the American and Canadian military chiefs of staff.
The Canadian government became the primary site of physical testing because the required cold climate and geographic isolation were available there. The National Research Council of Canada oversaw construction of the prototype at Patricia Lake, a glacially cold body of water in what is now Jasper National Park in Alberta. The model was built during the winter of 1942–1943 by a small team that included conscientious objectors assigned to alternative wartime work.
The structure at Patricia Lake was not a ship. It was a refrigerated insulated barge measuring approximately 18 meters long, 9 meters wide and 1.5 meters deep—roughly one-thirtieth the scale of the proposed operational vessel. Its purpose was to test whether pykrete could hold its form through a Canadian summer under mechanical refrigeration. The Jasper-Yellowhead Museum’s documentation of the site confirms the model’s approximate dimensions and the mechanical refrigeration system used to maintain it. The model survived the summer of 1943 intact, which was recorded as a genuine engineering result. When the project was cancelled, the prototype was left to melt naturally in the lake, where pieces of its machinery still rest on the bottom today.
What Was Actually Carried Out
The Patricia Lake prototype represented the full extent of physical construction under Project Habakkuk. No full-scale carrier sections were fabricated. No hull plating was cut from pykrete. No propulsion or weapons systems were fitted. The project existed, in physical terms, as laboratory samples, engineering calculations, architectural drawings and that single refrigerated barge in a mountain lake.
The material testing produced legitimate results. Pykrete was shown to be workable under the right conditions. Its compressive strength compared favorably to concrete. Its thermal properties made it substantially more resistant to melting than plain ice. The engineering case for the material itself was not disproven—the project’s cancellation did not rest on a finding that pykrete was fraudulent or impossible to produce.
What the testing also revealed was the sheer scale of the industrial challenge. The projected carrier would require refrigeration pipes running through millions of cubic feet of material. The wood pulp alone would demand a staggering volume of supply. The construction timeline extended well beyond 1944. And the refrigeration machinery—complex, energy-intensive and vulnerable to damage—would need to operate continuously throughout the ship’s service life, in the open North Atlantic.
The Alberta Aviation Museum’s account and the National Research Council archive both document this gap: the material worked at prototype scale, but the engineering, logistics and resource demand of the full-scale vessel had never been feasibly solved. The project moved from Churchill’s enthusiastic backing to a serious feasibility review, and the feasibility review is where the file begins to close.
YOUTUBE EMBED 1 — PRIMARY SEARCH QUERY: “Project Habakkuk pykrete documentary”
Why the Project Was Cancelled
The reasons Project Habakkuk was abandoned are multiple and reinforcing. No single decision ended it; the strategic environment shifted in several directions at once, each one reducing the case for the project.
The most significant factor was the changing air coverage situation in the North Atlantic. The mid-Atlantic gap that had made a floating airstrip seem necessary was closing through other means: long-range patrol aircraft, most notably the Consolidated B-24 Liberator fitted with additional fuel capacity, extended land-based coverage further into the ocean. Escort carriers—conventional steel vessels—were entering service in growing numbers and could be produced faster and at lower cost than any pykrete structure. By late 1943, the core strategic problem Habakkuk was designed to solve was being addressed by existing technology that was already in production.
The resource calculation also became untenable. The estimated steel requirement for the refrigeration system alone was enormous. The wood pulp volume required was in the millions of tons. The engineering labor and construction time would divert significant wartime capacity away from weapons and vessels already in the pipeline. The Allied resource allocation committees, reviewing the numbers, found that the same investment could produce multiple conventional escort carriers with immediate effect.
The refrigeration complexity raised reliability concerns that were not resolved. A ship whose structural integrity depended on continuous mechanical cooling was a ship that could be effectively destroyed by damage to its refrigeration system rather than its hull—a significant tactical vulnerability. The slow operational speed of six knots limited the carrier’s ability to operate with fast-moving fleet formations.
Project Habakkuk was formally wound down in 1943–1944. The National Research Council of Canada’s documentation records the technical findings without sentimentality. The idea was genuine; the engineering was pursued honestly; the strategic need dissolved before the construction problems could be solved.
YOUTUBE EMBED 2 — SECONDARY SEARCH QUERY: “Project Habbakuk aircraft carrier history”
What the Evidence Does Not Support
The documented record of Project Habakkuk is specific enough to mark clearly what later retellings have added to it.
No operational ice carrier was built. No vessel of any significant size was constructed from pykrete. The Patricia Lake prototype was a refrigerated barge used to test material behavior, not a ship section and not a weapons platform. Claims that a full carrier was secretly completed, sailed on operational missions, or remains preserved intact beneath Patricia Lake are not supported by any authenticated document.
The lake today contains the remains of the prototype’s refrigeration machinery—pumps, pipes and structural elements—which have been dived on by sport divers and documented by the Jasper-Yellowhead Museum. This wreckage is consistent with the known dimensions of the test barge. There is no evidence of a larger structure beneath the lake. The Parks Canada designation of the site treats it as the location of a prototype, not a ship.
The claim that Project Habakkuk was suppressed or hidden has no basis in the archive record. The National Research Council of Canada published its own history of the project. The engineering documents were declassified. The Patricia Lake site is openly documented and accessible to researchers. The project was not secret in the sense of being concealed from later inquiry; it was classified during wartime, as most engineering projects were, and then released into the public record.
Geoffrey Pyke himself is a figure whose biography has attracted considerable elaboration beyond what the project documents record. He was a genuine and unconventional thinker who contributed several notable ideas to Combined Operations. His later life and death have generated speculation that exceeds the available evidence, and that speculation is separate from the technical history of pykrete and Habakkuk.
Why the Secret Became Larger Than the File
Project Habakkuk has the elements that feed durable wartime mythology: an eccentric inventor, an outlandish material, a ship the size of a small city, powerful leaders gathered to watch a demonstration, a Canadian mountain lake where something still rests on the bottom. The gap between that story and its outcome—a quietly cancelled barge in a national park—is wide enough to invite embellishment.
The legend grew, in part, because the authentic story is genuinely extraordinary. A government did commission a floating island made of frozen wood pulp. Churchill was shown a demonstration. Engineers produced detailed plans. A structure was built and tested in a remote lake. Every one of those facts is true, and together they create a premise so improbable that later additions feel almost modest by comparison.
What the documented record shows is a wartime engineering program that was serious, properly resourced at the prototype stage, and honestly evaluated. The evaluation found that the strategic need was being met by other means before the construction challenges could be solved. The decision to cancel was a resource allocation decision, not a cover-up, and not evidence of a completed project hidden from history.
The Patricia Lake model held through the summer of 1943. That result was real. It simply arrived too late for a problem that was already being solved with steel hulls and longer-range aircraft. The frozen barge melted, as planned, and what remained sank to the bottom of a cold Alberta lake, where the machinery still sits—not as the remnant of a secret ship, but as the honest physical evidence of an idea that was tested, considered and set aside.
The file on Project Habakkuk is not missing. It was never hidden. It is a record of a genuine proposal, a real prototype and a straightforward decision made in the context of a war that was changing faster than any frozen ship could be built. That answer is less dramatic than the legend, but it is the one the documents support.
